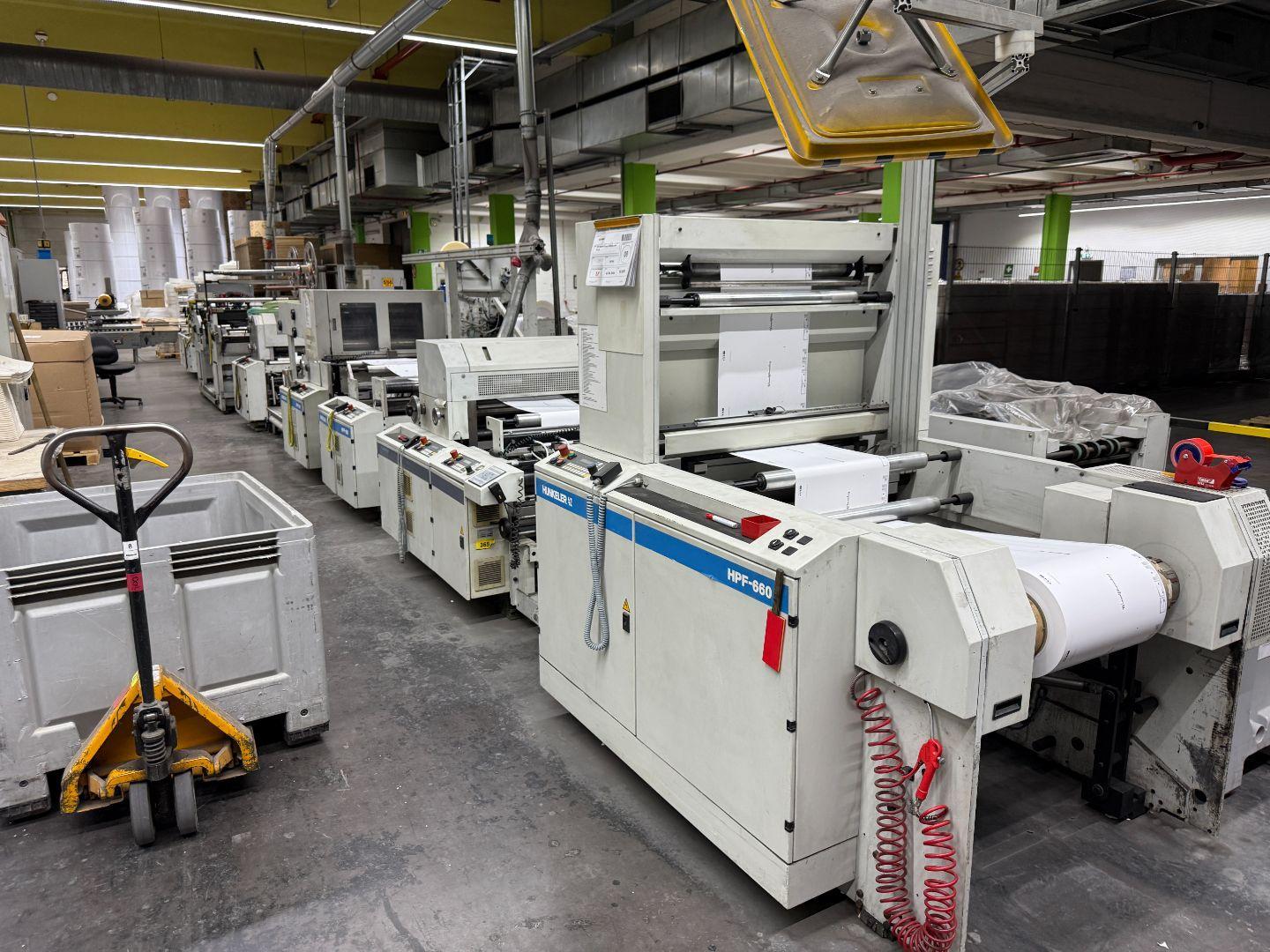

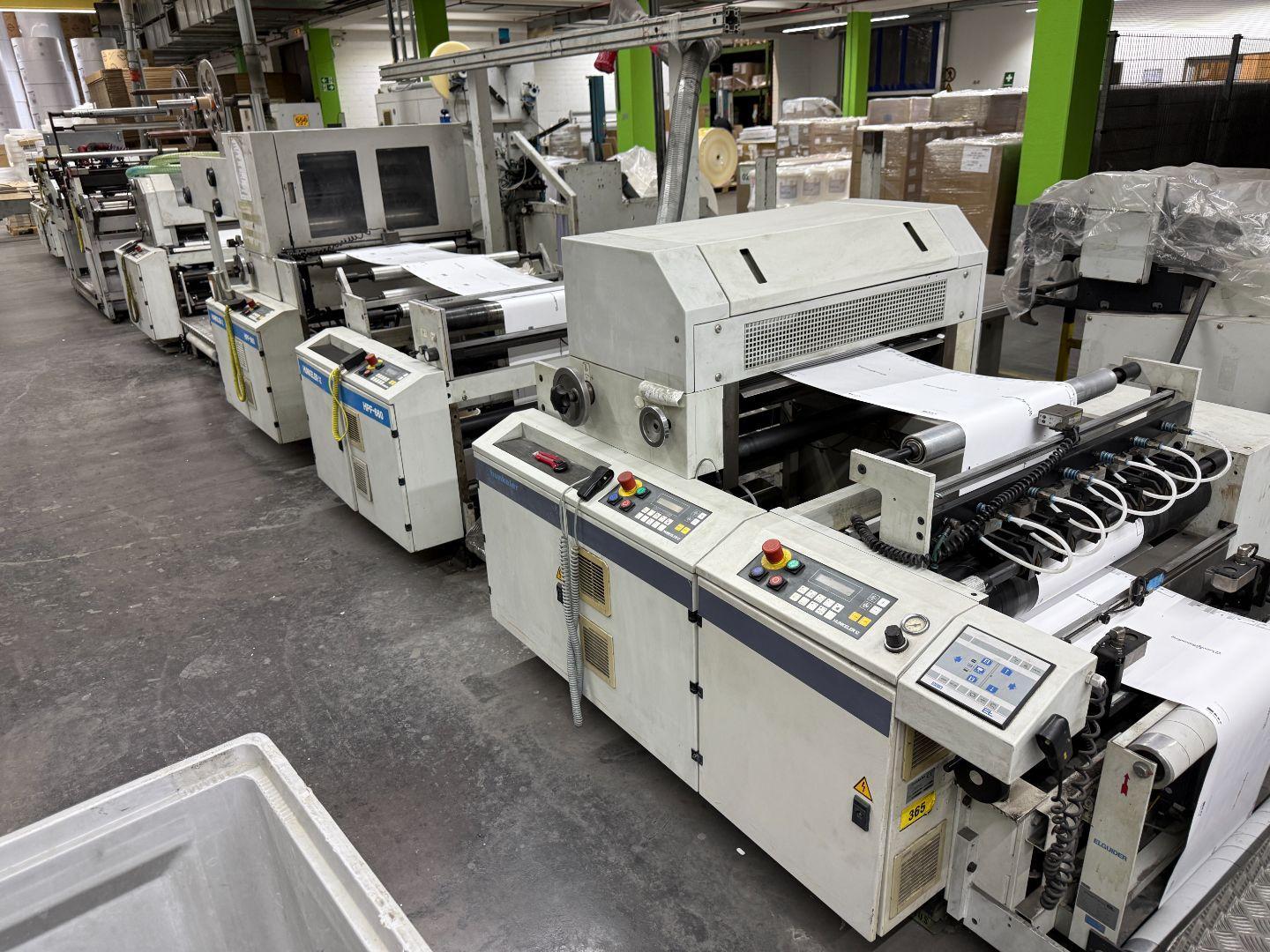

Technical data HPF-660

- Paper weight: 60 - 160g
- Paper temperature: 20° +/- 5°
- Paper moisture: 15 - 50% relative humidity
- Paper web width:
Min. 178 mm; Max. 520 mm

- Mechanical speed:
Min. 10 m/min; Max. 200 m/min; Set-up mode 5 m/min

- Production - Speed:
With flying folder max. 100 m/min; With flying folder module 100 m/min

- Compressed air connection: 6 bar

- Drive power:
DCU 075 7.5 KW
DCU 150 15.0 KW

- Back-up fuse:
DCU 075 max. 80A, 50/60 Hz
DCU 150 max. 100A, 50/60 HZ

- Temp. range workshop hall 10 - 25°

Equipment:

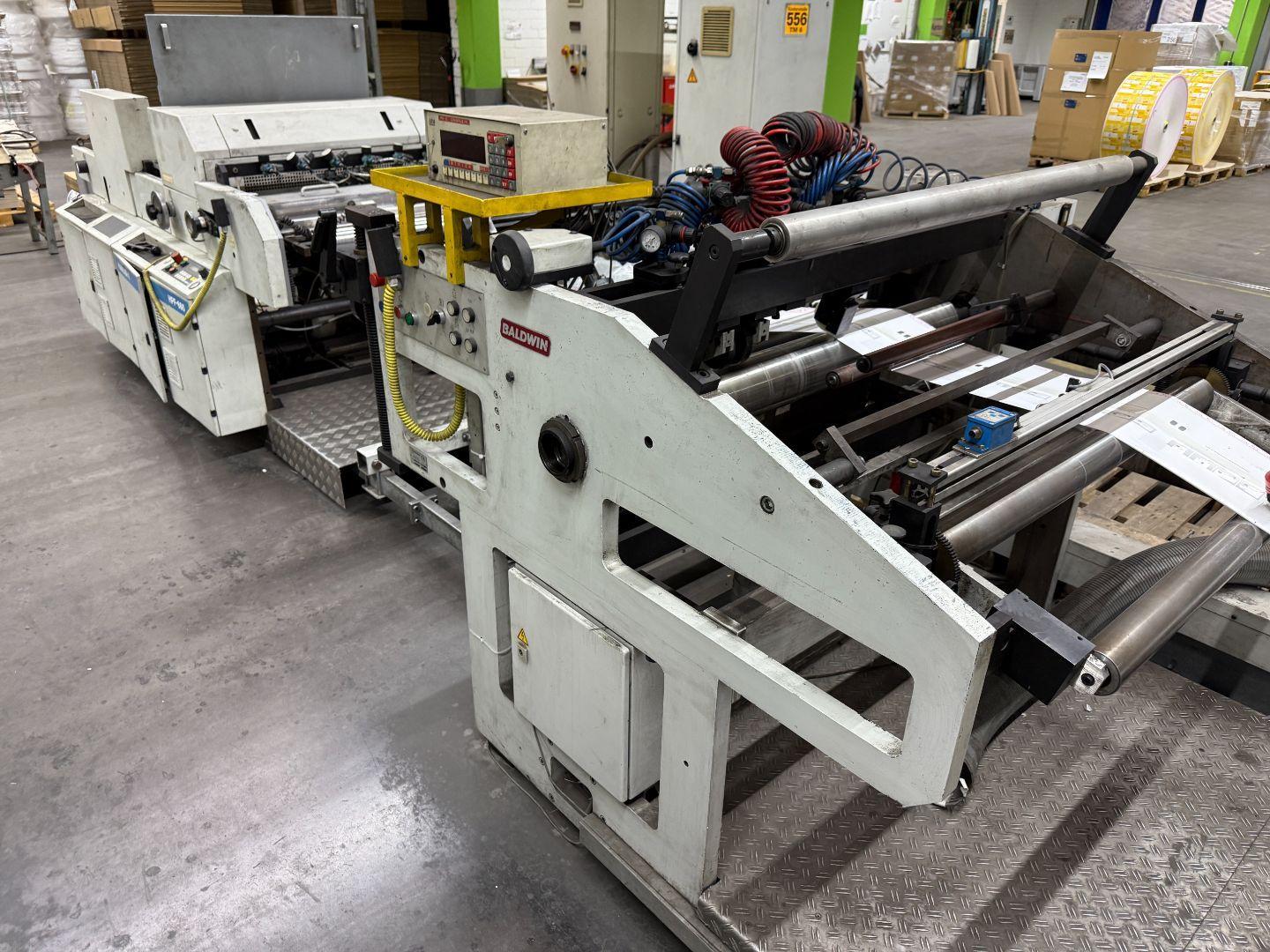

Paper unwinding station RUM 660
- max. paper weight: 60 - 160g
- max. paper width: 660 mm
- min. paper width: 178 mm
- max. max. roll diameter: 1270 mm
- inside core diameter: 70 mm and 150 mm

insetter INF 660
- formats: 20", 24", 25", 28", 32"
- consisting of print mark reader, web edge control and
web infeed device with register control.

DM 660 die-cutting module
Magnetic die-cutting cylinder with:
- max. die-cutting width: 660 mm
- format: 24" and 20"
- die-cutting plate thickness: 0.58 mm
- suction unit for die-cutting cut-outs

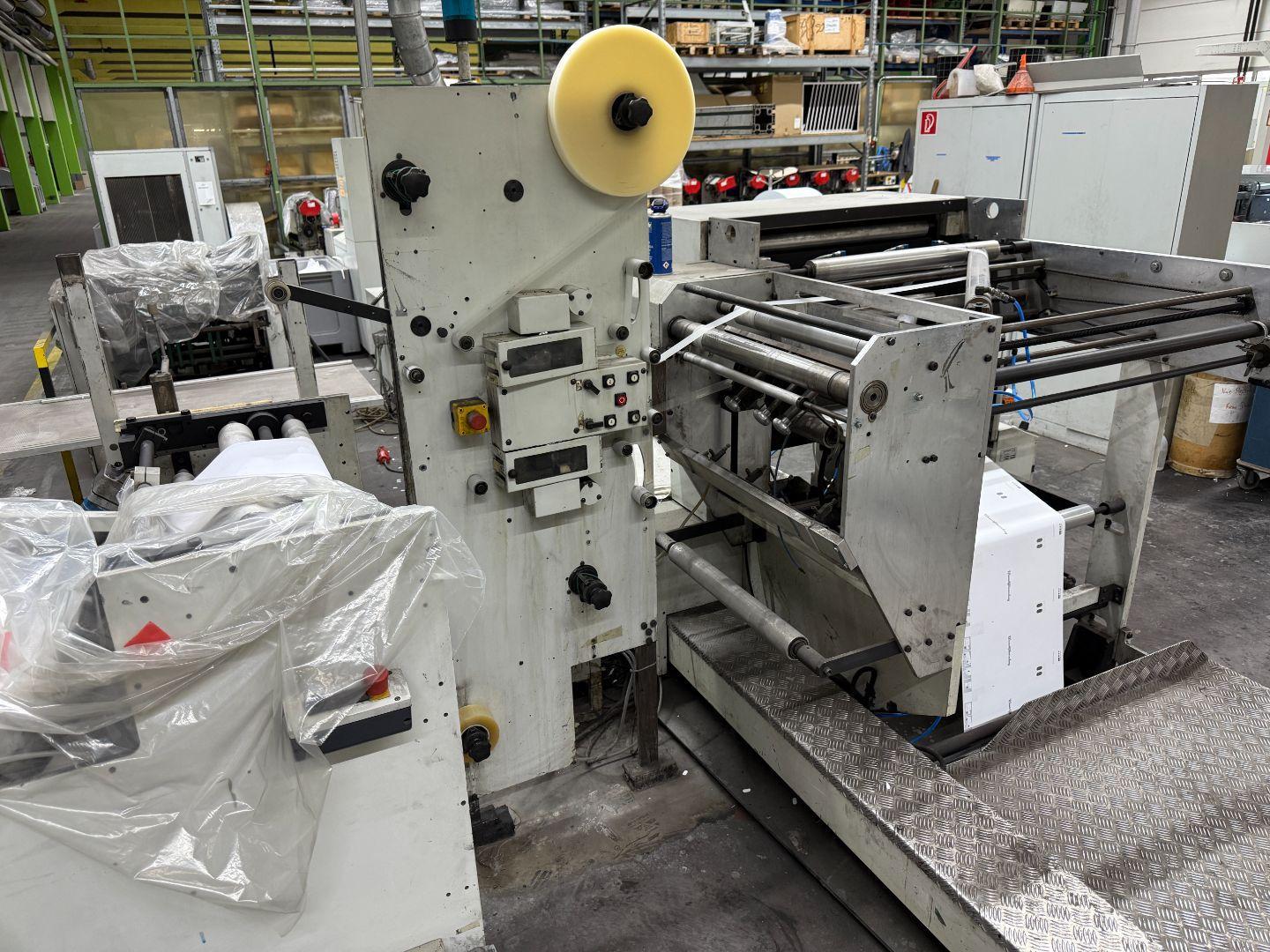

AM 660 application module
- with lateral roll unwinding for register-controlled application of unprinted webs, labels, silicone paper, foils, etc. minimum dispensing length 1 inch
- format set 24 inch pitch for format 4" / 6" / 8" / 12"
- format set 20 inch pitch for format 6 2/3" / 5" / 10"

Turning module WTM 660
- for turning the paper web by 180° while maintaining the running direction

Glue module_GM-V 660
- for partial gluing of the paper web with dispersion glue
- Formats: 20-28" gluing cylinder
- 2 plow folding stations for one-sided or double-sided longitudinal folding of the paper web with longitudinal cutting device and longitudinal perforation
- device for longitudinal creasing

Cross perforating module CPM 660
- Punch insert 24 inch

Cross cutting module CM 660
- with pull-out belt and cross cutting cylinder
- Formats:
32 inch pitch 8" - 16"
28 inch pitch 4 2/3" - 7" - 9 1/3" - 14"
25 inch pitch 4 1/6" - 8 1/3" - 12 1/2"
24 inch pitch all 2 inch pitch possible 6"- 12"
20 inch pitch 5 - 6 2/3" - 10"
- Sheet delivery Star wheel system for formats 5" / 6" / 6 2/3" / 12"

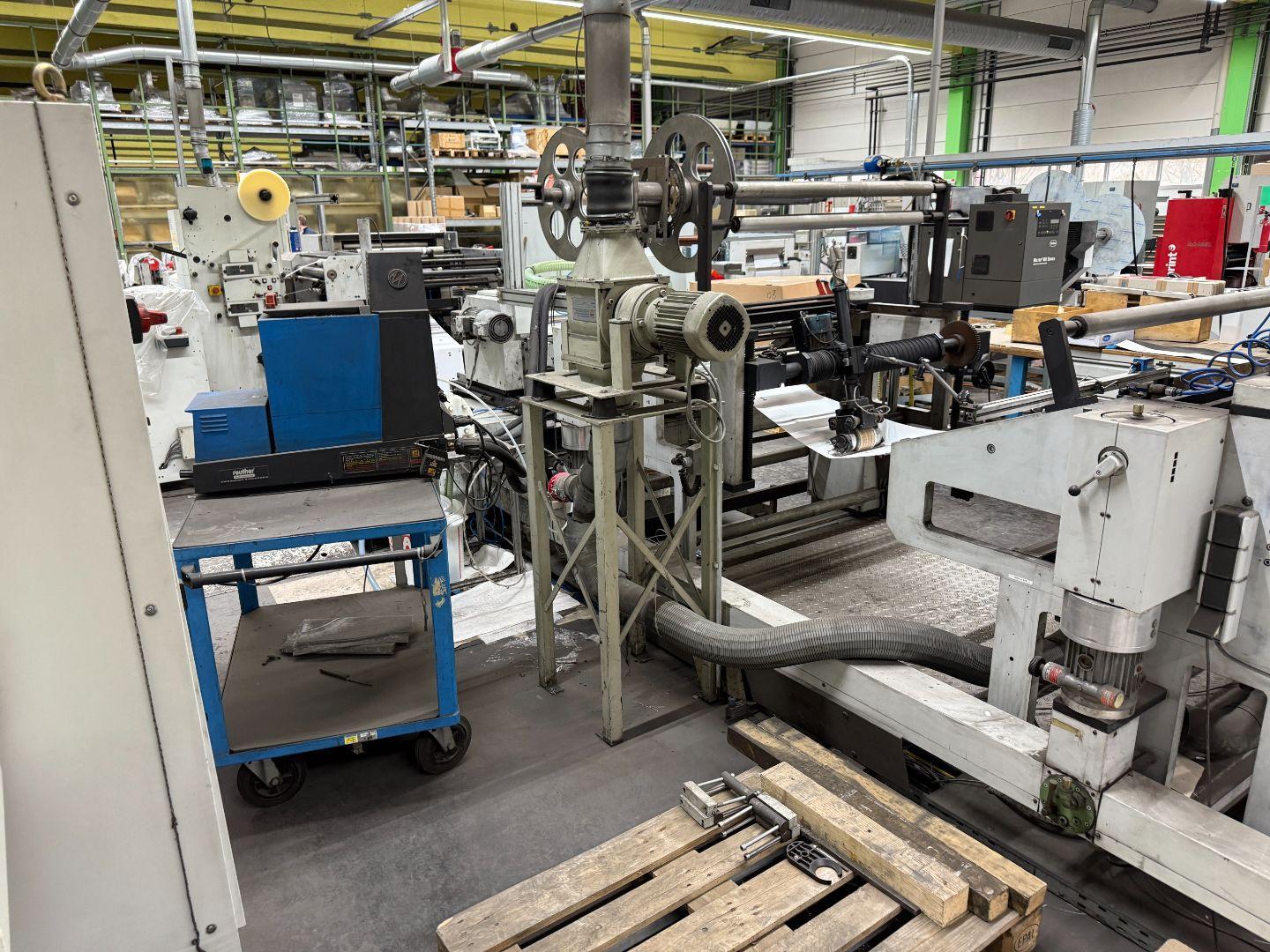

Hot glue from Reuther / HHS / Beckhoff C-1001

2x glue nozzles systems HM 200 B22

Special equipment: Invested for DHL parcel label, DIN A4 with back gluing, wrap fold

2x label dispenser from ETI Pack Energy 100


*All information without guarantee!
